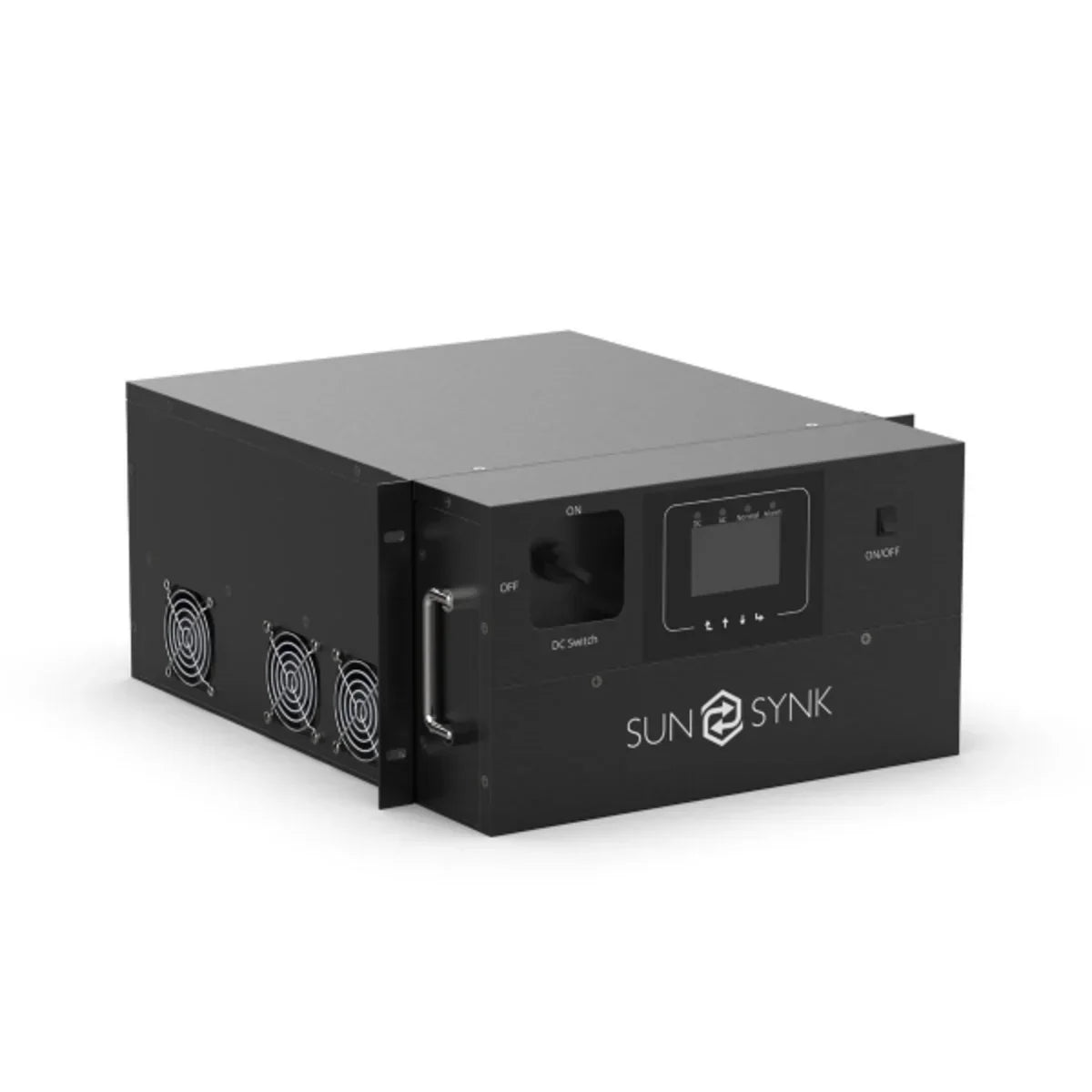

Sunsynk 7.6KW 48V Rack Mount Hybrid Inverter

Sunsynk 7.6KW 48V Rack Mount Hybrid Inverter

R 30,999.00 ZAR
R 35,999.00 ZAR R 30,999.00 ZAR
Sale Sold out
Shipping calculated at checkout.

11 in stock

FREE SHIPPING NATIONWIDE

Enjoy fast, reliable delivery at no extra cost—no matter where you are in South Africa. At Solarvac Energy, we offer free shipping on all orders, ensuring your solar products arrive safely and on time, right to your doorstep.

14 DAYS FREE RETURNS

14 Days Return

Not completely satisfied with your purchase? No problem. At Solarvac Energy, we offer a 14-day return policy on eligible items. Simply return the product in its original condition within 14 days of delivery for a refund or exchange—hassle-free and customer-focused.

Battery Input Data

  • Battery Type: Lead-acid or Lithium-ion
  • Battery Voltage Range: 40~60V
  • Max. Charging Current: 190A
  • Max. Discharging Current: 190A
  • Charging Curve: 3 Stages/Equalisation
  • External Temperature Sensor: Optional
  • Charging Strategy for Li-Ion Battery: Self-Adaptation to BMS

PV String Input Data

  • Max. DC Input Power: 9880W
  • PV Input Voltage: 370V (100V~500V)
  • MPPT Range: 125~425V
  • Start-up Voltage: 150V
  • PV Input Current:22A+22A
  • No. of MPPT Trackers: 2
  • No. of Strings Per MPPT Tracker: 2+2

AC Output Data

  • Rated AC Output and UPS Power: 7600W
  • Max. AC Power: 8360W
  • Peak Power (off-grid): 2 times of rated power, 10 S
  • AC Output Rated Current: 31.7A/33A
  • Max AC Output Current: 34.9A/36.3A
  • Max Continuous AC Passthrough: 50A
  • Output Frequency and Voltage: 50/60Hz; 120/240Vac(split phase), 208Vac(2/3), 230Vac(single phase)
  • Grid Type: Split phase, 2/3 phase, Single phase
  • Current Harmonic Distortion: THD<3%(Linear load<1.5%)

Efficiency

  • Max. Efficiency: 97.60%
  • MPPT Efficiency: 96.50%
  • Euro Efficiency: 99.90%

Integrated Protection

  • PV Arc Fault Detection, PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity
  • Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output
  • Shorted Protection, Output Over Voltage Protection

General Data

  • Operating Temperature Range: -25~60°C, >45°C Derating
  • Cooling: Fan
  • Noise: <30
  • Communication with BMS: RS485; CAN
  • Warranty: 5 years
