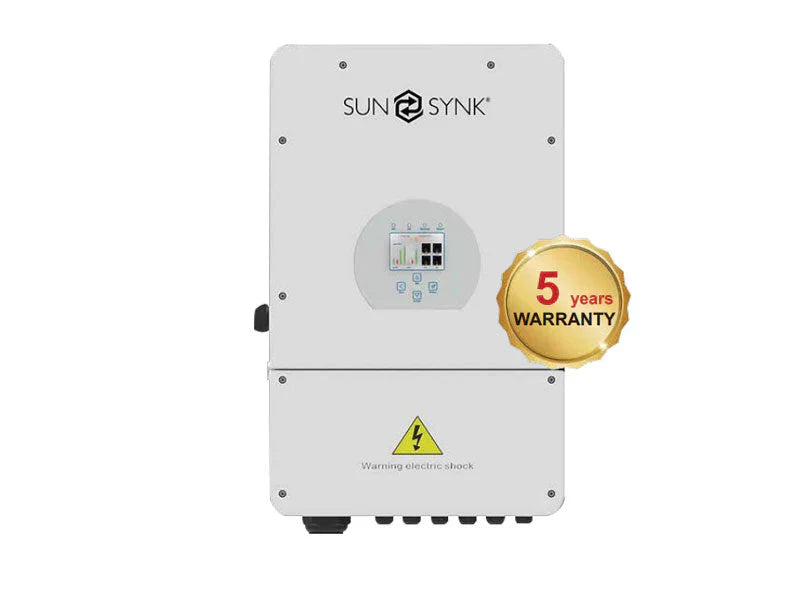

SUNSYNK 16kW Hybrid Inverter 3 Phase

SUNSYNK 16kW Hybrid Inverter 3 Phase

R 42,999.00 ZAR
R 42,999.00 ZAR
Sale Sold out
Shipping calculated at checkout.

Low stock: 6 left

FREE SHIPPING NATIONWIDE

Enjoy fast, reliable delivery at no extra cost—no matter where you are in South Africa. At Solarvac Energy, we offer free shipping on all orders, ensuring your solar products arrive safely and on time, right to your doorstep.

14 DAYS FREE RETURNS

14 Days Return

Not completely satisfied with your purchase? No problem. At Solarvac Energy, we offer a 14-day return policy on eligible items. Simply return the product in its original condition within 14 days of delivery for a refund or exchange—hassle-free and customer-focused.
  • SUNSYNK 16kW Hybrid Inverter (3 Phase) – SUNSYNK MAX
  • Model SUNSYNK MAX
  • The Most Powerful Low-voltage Inverter In The World.
  • Achieves a Maximum Output Power of 16kW & Battery Charge Current of 300A
  • Manages Power-flow from multiple sources such as Solar, Main Power (Grid) & Generators, then effectively storing & releasing power as & when utilities require.
  • Colourful Touch LCD
  • Storing energy from diesel generator supported.
  • Wi-Fi & GSM monitoring supported.
  • Equipped with Visual power flow screen.
  • Parallel/multi invert function grid-tied & off-grid.
  • Grid Type: Single-Phase.
  • Protection Degree: IP65
  • Noise Level: <30dB
  • Maximum Charge & Discharge Current: 300A
  • Battery Charging Strategy: Self-Adaptation to BMS
  • Maximum DC Input Power: 18000W
  • MPPT Range: 250-450V
  • Start-up Voltage: 150V
  • Maximum On-Grid AC Power: 16000W
  • Maximum Off-Grid AC Power: 13000W
  • AC Output Rated Current: 65A
  • Maximum AC Current: 70A
  • Frequency Range: 45-55Hz
  • Voltage Range: 211-264V
  • Maximum Efficiency: 97.60%
  • MPPT Efficiency: 99.90%
  • Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
  • Battery Voltage Range: 43-60V
  • Communication with BMS: CAN/RS485
  • Fan Cooling
  • Operation Temperature: -25°C to 55°C
  • Installation Type: Wall Mounted.
  • Weight: 34.5Kg
  • Dimensions (W x H x D): 422 x 702 x 281 mm
  • Refer To Brochure For Detailed Product Specifications.
  • Product might vary from depicted images.
  • Graphics are for illustrative purposes only.
  • 5 Year Limited Product Warranty.
  • Free Delivery Nationwide – South Africa
  • Recommended Solar Panel Configuration:
    • Min 5 Panels – Max 24 Panels (Refer to breakdown below for Panel set up per MPPT)
    • First MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on first MPPT)
    • Second MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on second MPPT)
    • Third MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on third MPPT)
    • Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
