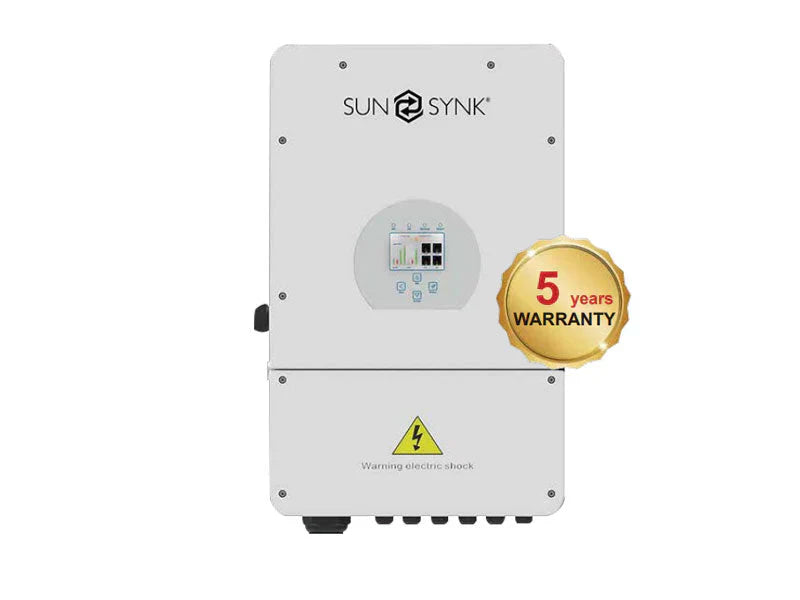

SunSynk 10KW 48V Single Phase Hybrid Inverter

SunSynk 10KW 48V Single Phase Hybrid Inverter

R 26,999.00 ZAR
R 26,999.00 ZAR
Sale Sold out
Shipping calculated at checkout.

Low stock: 9 left

FREE SHIPPING NATIONWIDE

Enjoy fast, reliable delivery at no extra cost—no matter where you are in South Africa. At Solarvac Energy, we offer free shipping on all orders, ensuring your solar products arrive safely and on time, right to your doorstep.

14 DAYS FREE RETURNS

14 Days Return

Not completely satisfied with your purchase? No problem. At Solarvac Energy, we offer a 14-day return policy on eligible items. Simply return the product in its original condition within 14 days of delivery for a refund or exchange—hassle-free and customer-focused.

The SunSynk 10KW 48V Single Phase Hybrid Inverter is a highly efficient power management tool that allows the user to hit those ‘parity’ targets by managing power-flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require.

Applications

  • Marine (vessel power management).
  • Power shedding (home/office/factory).
  • UPS (fuel-saving systems).
  • Remote locations with solar and wind generators.
  • Building sites.
  • Telecommunication.

Technical Specifications Battery Input Data

  • Battery Type: Lead-acid or Lithium-ion.
  • Battery Voltage Range: 40~60V.
  • Max. Charging Current: 220A.
  • Max. Discharging Current: 220A.
  • Charging Curve: 3 Stages/Equalization.
  • Charging Strategy for Li-Ion: Battery Self-adaption to BMS.

PV String Input Data

  • Max. DC Input Power: 13000W.
  • PV Input Voltage: 370V (125V~500)
  • Start-up Voltage: 125V
  • MPPT Range: 150V~425V.
  • Full Load Dc Voltage Range: 200V-425V
  • PV Input Current: 26A+26A+26A+
  • Max. PV Isc:44A+44A+44A
  • No. of Strings Per MPPT Tracker: 3 / 2+2+2

AC Output Data

  • Rated AC Output and UPS Power: 10000W.
  • Max. AC Power: 11000W.
  • AC Output Rated Current: 45.5/43.5A
  • Max AC Output Current: 50/47.9A
  • Max Continuous AC Passthrough: 70A.
  • Peak Power (Off Grid): 2 Time of Rated Power, 10 S
  • Power Factor Adjustment Range:0.8 Leading to 0.8 Lagging
  • Power Factor: 1
  • Output Frequency and Voltage: 50 / 60Hz; L/N/PE 220/230Vac
  • Grid Type: Split Phase; 2/3 phase, Single Phase
  • Total Harmonics Current Distortion (THDi):<3% (of nominal power)
  • Current Harmonic Distortion: THD<3% (Linear load<1.5%).
  • DC Current Injection:<0.5% In

Efficiency

  • Max. Efficiency: 97.6%.
  • MPPT Efficiency: 97.0%.
  • Euro Efficiency: 99.9%.

Protection

  • Integrated: Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current
  • Protection, Output Shorted Protection, Surge Protection
  • Over Voltage Category: DC Type II/AC Type III

Certifications and Standards:

  • Grid Regulation: VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
  • Safety EMC / Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

General Data

  • Operating Temperature Range -40~60°C, >45°C Derating.
  • Cooling: Smart Cooling
  • Noise: ≤30 dB
  • Communication with BMS RS485; CAN.
  • Weight: 32kg.
  • Size: 420W×670H×233D mm (Excluding connectors and brackets)
  • Protection Degree: IP65.
  • Installation Style: Wall-mounted.
  • Warranty: 5 years.
