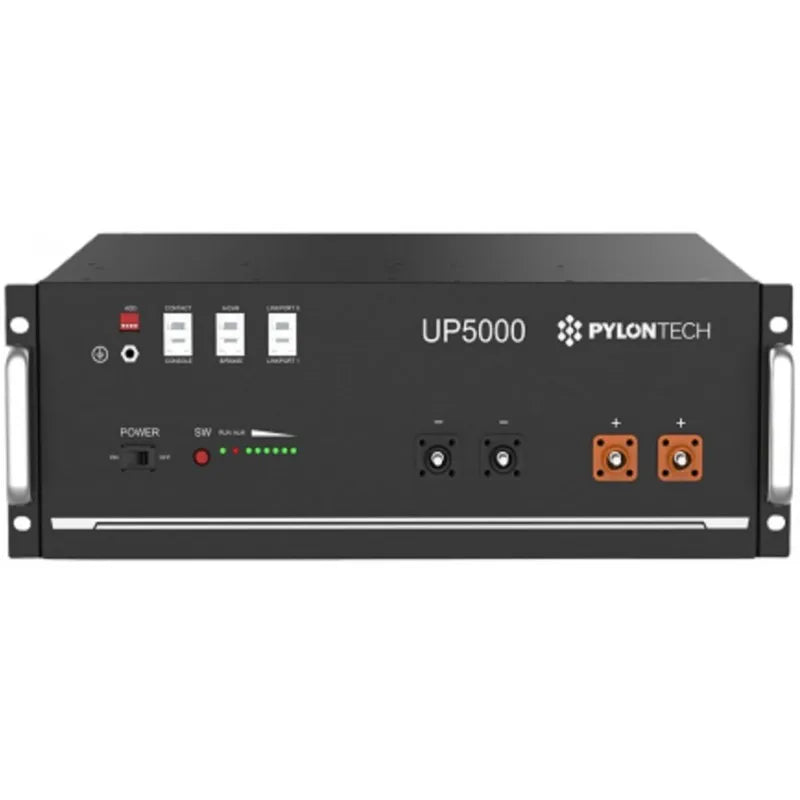

Pylontech UP5000 100Ah 4.8kWh 48V Li-Ion Battery
R 14,999.00
Brand:
SOLARVAC ENERGY
Availability:
Out of stock In stock
Title:
Buy now
Visa PayPal Mastercard American Express
  • Description

    Product Features

    • Modular design for ease of expansion.
    • Higher usable capacity resulting in less battery modules installed.
    • Usable capacity 4 560Wh.
    • Parallel Capability of up to 16 units.
    • Allows for large installation of up to 72.96kWh with no LV Hub.
    • Intelligent BMS protecting battery cells.
    • 95% DoD with more usable capacity.
    • RS485 and CAN compatible.
    • Comes with a 5-year warranty non-extendable.

    Specifications
    Nominal

    • Nominal Voltage（V）: 48.
    • Nominal Capacity（Wh）: 4800.
    • Useable Capacity（Wh）: 4560.

    Physical

    • Dimension（mm）: 442*420*165.
    • Weight（Kg）: 41.

    Electrical

    • Discharge Voltage（Vdc）: 44.5.
    • Charge Voltage（Vdc）: 52.5 ~ 53.5.
    • Charge / Discharge Current（Amps）: 50（Continuous） 74-89(60sec） 90-200A（Peak@15sec）.

    Others

    • Communication Port: RS485,CAN.
    • Single string quantity(pcs): 16.
    • Altitude (M): ＜4000.
    • IP rating: IP20.
    • Design life: 10+ Years.
    • Cycle Life: >4,500.
  • Additional information
    Vendor: SOLARVAC ENERGY
