Safe and Reliable · Higher Efficiency · Floor and Wall Mount · Flexible Expansion M48100 adopts economic design, tailor-made for residential and light commercial.
Features
Expandable: Up to 40 units in parallel
Larger capacity base: 4.8kWh per unit
Temperature range: of -20~50℃
Safety: Cell-level monitoring and balancing
Various Installation Options: Floor-standing, wall-mounted and stack
Wide Compatibility: Matches leading inverter brands
Specifications

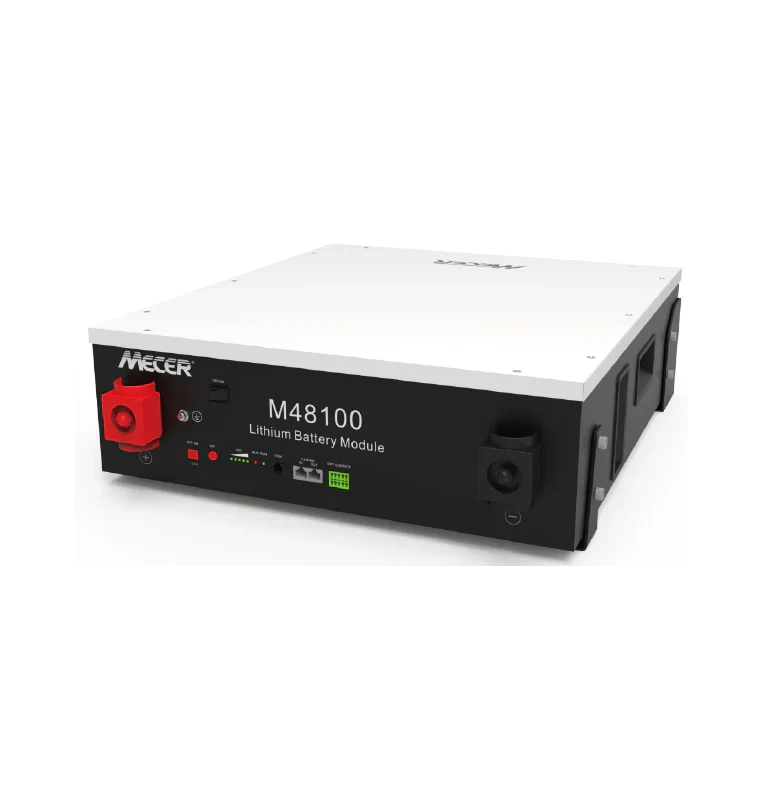

Model: M48100
Battery Type: LiFePO4
Nominal Battery Energy: 4.8kWh
Battery Capacity: 100Ah
Nominal Voltage: 48V
Charging Cut-off voltage: 54V
Discharging End-of voltage: 42V
Recommended C Rate: 0.5C
Recommended Charge/Discharge Current: 50A
Max.Charge/Discharge Current: 75A
Peak Power Charge/Discharge Current: 100A(15s)
Net Weight: 45kg
Dimension(W*D*H): 504 x 597 x 155 mm
Charging Temp. Range: 0-50℃
Discharging Temp. Range: -20-50℃
Communication: CAN / RS485
Warranty: 5 Years
Compatible Inverters: Victron, SMA, Goodwe, Imeon, Solis, SAJ, Growatt, Luxpower, Voltronic, Deye etc.
Pros: Can be used in both off-grid and hybrid setups, compact design
Scalability: Protection Level
Calendar Life: ≥6000 Cycles
Protection Level: IP20
