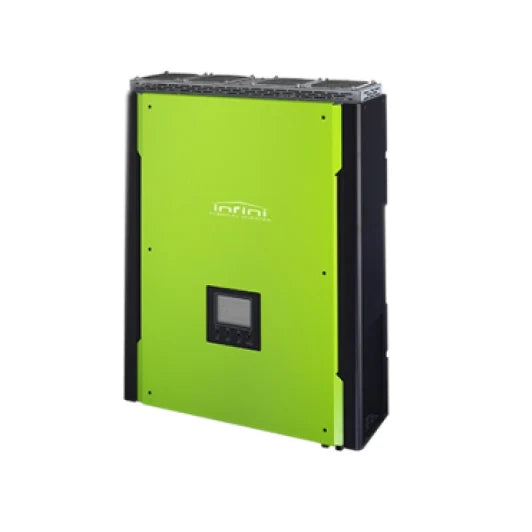

Mecer Infini Solar 15kW 3-Phase Dual MPPT Hybrid Inverter

Mecer Infini Solar 15kW 3-Phase Dual MPPT Hybrid Inverter

R 50,999.00 ZAR
R 50,999.00 ZAR
Sale Sold out
Shipping calculated at checkout.

22 in stock

FREE SHIPPING NATIONWIDE

Enjoy fast, reliable delivery at no extra cost—no matter where you are in South Africa. At Solarvac Energy, we offer free shipping on all orders, ensuring your solar products arrive safely and on time, right to your doorstep.

14 DAYS FREE RETURNS

14 Days Return

Not completely satisfied with your purchase? No problem. At Solarvac Energy, we offer a 14-day return policy on eligible items. Simply return the product in its original condition within 14 days of delivery for a refund or exchange—hassle-free and customer-focused.
  • Pure sine wave output
  • Self-consumption and Feed-in to the grid
  • Programmable supply priority for PV , Battery or Grid
  • User-adjustable charging current up to 300A
  • Programmable multiple operation modes: Grid-tie , off-grid & grid-tie with backup
  • Built-in timer for various mode of on/off operation
  • Multiple communication for USB, RS-232, Modbus and SNMP
  • Monitoring software for real-time status display and control
  • Parallel operation up to 6 units
  • Warranty: 24 months

 Technical Specifications

  • Model: InfiniSolar 15KW.
  • Phase: 3-phase in/3-phase out.
  • Max. PV Input Power: 22500W.
  • Rated Output Power: 15000W.
  • Maximum Charging Power: 15000W.

Grid-Tie Operation
PV Input (DC)

  • Nominal DC Voltage/Max. DC Voltage: 720 VDC/900 VDC.
  • Start-up Voltage/Initial Feeding Voltage: 320 VDC/350 VDC.
  • MPP Voltage Range: 350VDC~850 VDC.
  • Number of MPP Trackers/Maximum Input Current: 2/A:37.65A , B: 18.6A

Grid Output (AC)

  • Nominal Output Voltage: 230 VAC (P-N) / 400 VAC (P-P)
  • Output Voltage Range: 184 -264.5 VAC per phase
  • Nominal Output Current: 21.7A per phase
  • Power Factor: >0.99.

Efficiency

  • Maximum Conversion Efficiency (DC/AC): 96%.
  • European Efficiency @ Vnominal: 95%.

Off-Grid Operation
AC Input

  • AC start-up Voltage/Auto Restart Voltage: 120-140 VAC per phase/180 VAC per phase.
  • Acceptable Input Voltage Range: 170-280 VAC per phase.
  • Max. AC Input Current: 40A.

PV Input (DC)

  • Max. DC Voltage: 900 VDC.
  • MPP Voltage Range: 350 VDC~850 VDC.
  • Number of MPP Trackers/Max. Input Current: 2/A: 37.65A, B:18.6A

Battery Mode Output (AC)

  • Nominal Output Voltage: 230 VAC (P-N)/400 VAC(P-P).
  • Output Waveform: Pure Sinewave.
  • Efficiency (DC to AC): 91%.

Hybrid Operation
PV Input (DC)

  • Nominal DC Voltage/Max. DC Voltage: 720 VDC/900.
  • Start-up Voltage/Initial Feeding Voltage: 320 VDC/ 350 VDC.
  • MPP Voltage Range: 350 VDC~850 VDC.
  • Number of MPP Trackers/Max. Input Current: 2/A: 37.65A , B: 18.6A

Grid Output (AC)

  • Nominal Output Voltage: 230 VAC (P-N)/400 VAC(P-P).
  • Output Voltage Range: 184-264.5 VAC per phase.
  • Nominal Output Current: 21.7A per phase.

AC Input

  • AC Start-up Voltage/Auto Restart Voltage: 120-140 VAC per phase/180 VAC per phase.
  • Acceptable Input Voltage Range: 170-280 VAC per phase.
  • Max. AC Input Current: 40A.

Battery Mode Output (AC)

  • Nominal Output Voltage:230 VAC (P-N)/400 VAC(P-P)
  • Efficiency (DC to AC): 91%.

Battery & Charger

  • Nominal DC Voltage: 48 VDC.
  • Max. Charging Current: Default 60A, 5A-300A (Adjustable).

General
Physical

  • Dimension (D x W x H) (mm): 219 x 650x 820
  • Net weight (kgs): 62

Interface

  • Communication Port: RS-232/USB and Dry contact
  • Intelligent Slot: Optional SNMP, Modbus and AS-400 cards available.

Environment

  • Humidity: 0~90% RH (Non-condensing).
  • Operating Temperature: -10 to 55 °C
  • Altitude: 0-1000 m.
