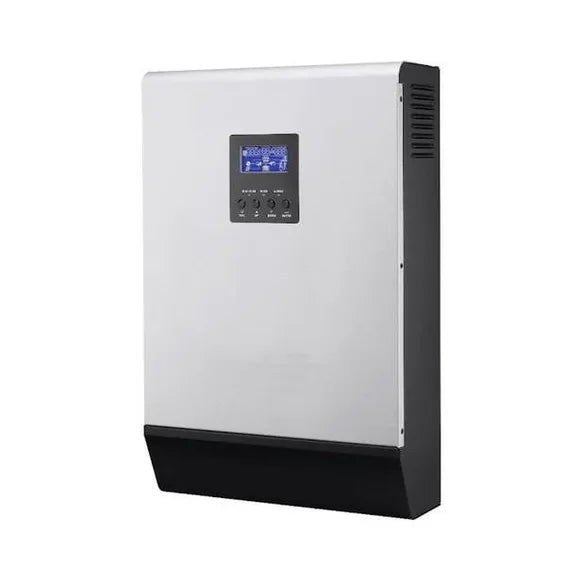

Mecer Axpert VP 5kVA 5kW 48V Hybrid Inverter

Mecer Axpert VP 5kVA 5kW 48V Hybrid Inverter

R 8,199.00 ZAR
R 8,199.00 ZAR
Sale Sold out
Shipping calculated at checkout.

Low stock: 4 left

FREE SHIPPING NATIONWIDE

Enjoy fast, reliable delivery at no extra cost—no matter where you are in South Africa. At Solarvac Energy, we offer free shipping on all orders, ensuring your solar products arrive safely and on time, right to your doorstep.

14 DAYS FREE RETURNS

14 Days Return

Not completely satisfied with your purchase? No problem. At Solarvac Energy, we offer a 14-day return policy on eligible items. Simply return the product in its original condition within 14 days of delivery for a refund or exchange—hassle-free and customer-focused.
Features
  • Pure sine wave solar inverter
  • Output power factor 1
  • Selectable high power charging current
  • Wide DC input range
  • Selectable input voltage range for home appliances and personal computers
  • Configurable AC/Solar input priority via LCD setting
  • Compatible to AC mains or generator power
  • Auto restart while AC is recovering
  • Overload and short circuit protection
  • Battery equalization for optimized battery performance and lifecycle
  • Cold start function
  • Optional anti-dust kit

Technical Specifications

General

  • Model: Axpert VM 5000-48
  • Rated Power: 5000 VA / 5000 W.
  • Parallel capability: None

Input

  • Voltage: 230 VAC.
  • Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
  • Frequency Range: 50 Hz/60 Hz (Auto sensing).

Output

  • AC Voltage Regulation (Batt. Mode): 230VAC ± 5%.
  • Surge Power: 10000 VA.
  • Efficiency (Peak): 90%~93%.
  • Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).
  • Waveform: Pure sine wave.

Battery & AC Charger

  • Battery Voltage: 48 VDC.
  • Floating Charge Voltage: 54 VDC.
  • Overcharge Protection: 63 VDC.

Solar Charger & AC Charger

PWM:

  • Maximum PV Array Open Circuit Voltage: 105 VDC
  • Maximum PV Array Power: 2400W
  • Maximum Solar Charge Current: 50A
  • Maximum AC Charge Current: 60A
  • Maximum Charge Current: 110A

Physical

  • Dimension, D x W x H (mm): 100 x 300 x 440
  • Net Weight (kgs): 8.5
  • Communication Interface: USB / RS232

Operating Environment

  • Humidity: 5% to 95% Relative Humidity(Non-condensing).
  • Operating Temperature: 0°C to 55°C.
  • Storage Temperature: -15°C to 60°C.
