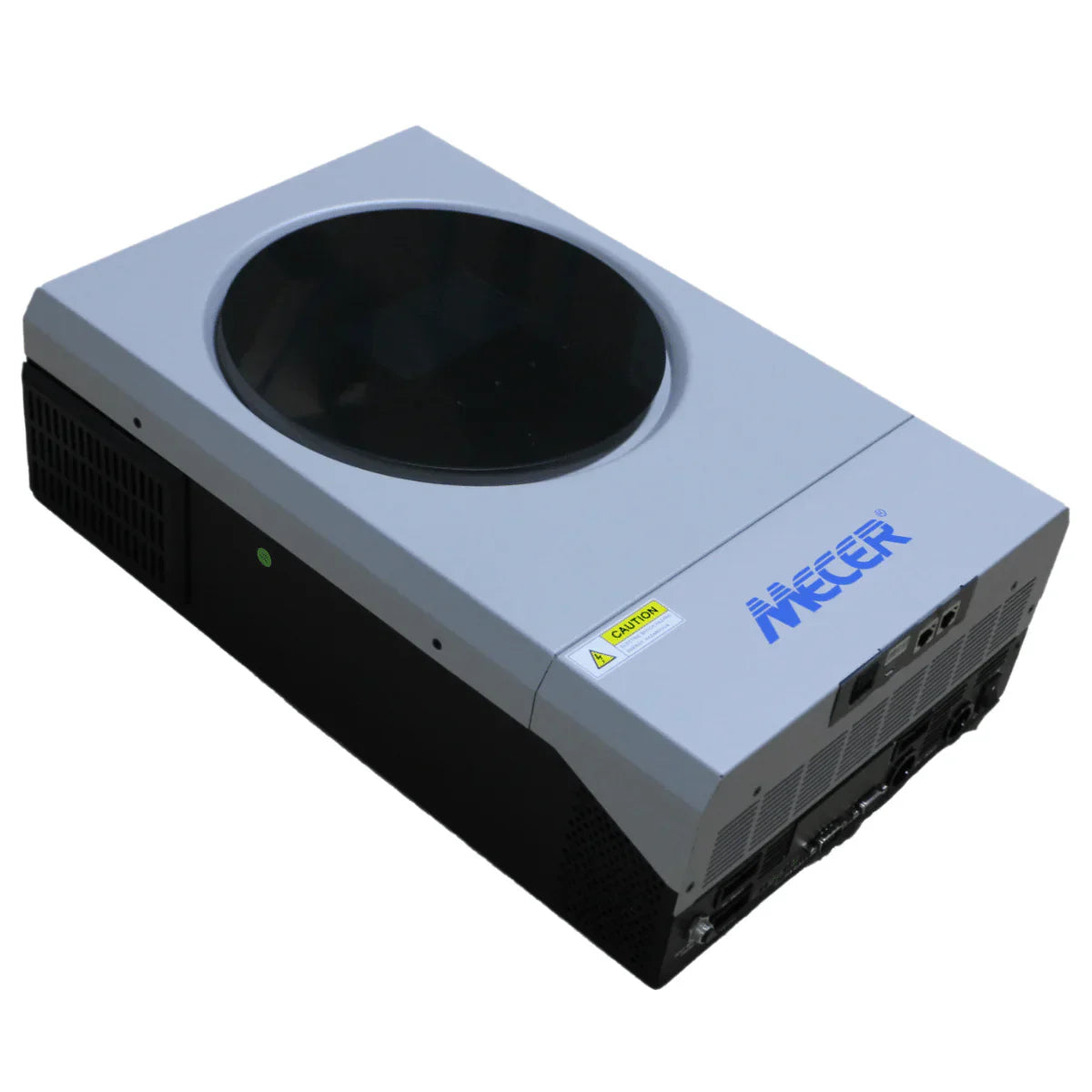

Mecer Axpert MKS IV 5kVA 5kW 48V Off-grid Inverter

Mecer Axpert MKS IV 5kVA 5kW 48V Off-grid Inverter

R 12,999.00 ZAR
R 12,999.00 ZAR
Sale Sold out
Shipping calculated at checkout.

18 in stock

FREE SHIPPING NATIONWIDE

Enjoy fast, reliable delivery at no extra cost—no matter where you are in South Africa. At Solarvac Energy, we offer free shipping on all orders, ensuring your solar products arrive safely and on time, right to your doorstep.

14 DAYS FREE RETURNS

14 Days Return

Not completely satisfied with your purchase? No problem. At Solarvac Energy, we offer a 14-day return policy on eligible items. Simply return the product in its original condition within 14 days of delivery for a refund or exchange—hassle-free and customer-focused.

Features:

  • Pure sinewave MPPT solar inverter
  • Customizable status LED ring with RGB lights
  • Touchable button with 4.3″ colored LCD
  • Wide DC input range
  • Supports USB On-the-Go function
  • Data log event stored in the inverter
  • Built-in Wi-Fi for mobile monitoring (App is available)
  • Reserved communication port for BMS
  • Battery independent function
  • Parallel up to 9 units

Technical Specifications
General

  • Model: Axpert MKS IV 5600-485
  • Rated Power: 5600 VA / 5600 W.
  • Parallel Capability: up to 9 units.

Input

  • Voltage: 230 VAC.
  • Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
  • Frequency Range: 55 Hz/60 Hz (Auto sensing).

Output

  • AC Voltage Regulation (Batt. Mode): 230VAC ± 5%.
  • Surge Power: 10000 VA.
  • Efficiency (Peak): 93%.
  • Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).
  • Waveform: Pure sine wave.

Battery & AC Charger

  • Battery Voltage: 48 VDC.
  • Floating Charge Voltage: 54 VDC.
  • Overcharge Protection: 66 VDC.

Solar Charger & AC Charger

  • Maximum PV Array Power: 6000W.
  • Solar Charger Type: MPPT
  • MPPT Range @ Operating Voltage: 120VDC ~430 VDC.
  • Maximum PV Array Open Circuit Voltage: 450 VDC.
  • Maximum Solar Charge Current: 120 A.
  • Maximum AC Charge Current: 120 A.

Physical

  • Dimension, D x W x H (mm): 140 x 295 x 468.
  • Net Weight (kgs): 12

Operating Environment

  • Humidity: 5% to 95% Relative Humidity(Non-condensing).
  • Operating Temperature: 0°C to 50°C.
  • Storage Temperature: -15°C to 60°C.
