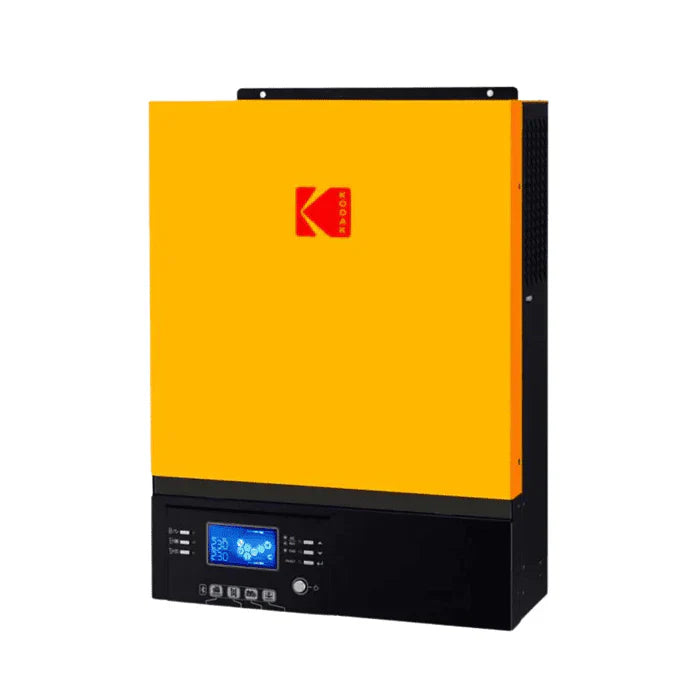

Kodak VMIII 3kW 24V Solar Off-Grid Inverter

Kodak VMIII 3kW 24V Solar Off-Grid Inverter

R 7,199.00 ZAR
R 7,199.00 ZAR
Sale Sold out
Shipping calculated at checkout.

Low stock: 10 left

FREE SHIPPING NATIONWIDE

Enjoy fast, reliable delivery at no extra cost—no matter where you are in South Africa. At Solarvac Energy, we offer free shipping on all orders, ensuring your solar products arrive safely and on time, right to your doorstep.

14 DAYS FREE RETURNS

14 Days Return

Not completely satisfied with your purchase? No problem. At Solarvac Energy, we offer a 14-day return policy on eligible items. Simply return the product in its original condition within 14 days of delivery for a refund or exchange—hassle-free and customer-focused.

Features

  • Removable LCD control module with multiple communications servers and ATM.
  • Built-in Bluetooth for mobile monitoring (Android App is available).
  • Replaceable fan design for ease of maintenance.
  • Supply load from Grid or PV, even battery is not available.
  • Configurable AC/PV output usage timer and prioritization.
  • Selectable high-power charging current.
  • Selectable input voltage range for home appliances and personal computers.
  • Compatible to Utility Mains or generator input.
  • Auto restart while AC is recovering.
  • Cold start function.

Technical Data

  • Model: OG 3.24.
  • Rated Power: 3000VA/3000W.
  • Parallel: No

Input

  • Voltage: 230 VAC.
  • Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
  • Frequency Range: 50 Hz/60 Hz (Auto sensing).

Output

  • AC Voltage Regulation (Batt. Mode: 230VAC ± 5%.
  • Surge Power: 6000VA.
  • Efficiency (Peak): 93%.
  • Transfer Time: 15 ms (For Personal Computers); 20 ms (For Home Appliances).
  • Waveform: Pure sine wave.

Battery

  • Battery Voltage: 24 VDC.
  • Floating Charge Voltage: 27 VDC.
  • Overcharge Protection: 33 VDC.

Solar Charger & AC Charger

  • Solar Charger Type: MPPT.
  • Maximum PV Array Power: 4000 W.
  • MPP Range @ Operating Voltage: 120 VDC ~ 430 VDC.
  • Maximum PV Array Open Circuit Voltage: 500 VDC.
  • Maximum Solar Charge Current: 80 A.
  • Maximum AC Charge Current: 60 A.
  • Maximum Charge Current: 80 A.

Physical

  • Dimension, D x W x H (mm): 115 x 300 x 400.
  • Net Weight (kgs): 9.
  • Communication Interface: USB/RS232/RS485/Bluetooth/Dry contact.

Included in box

  • Inverter x 1
  • User manual x 1
  • RS232 Communication cable x 1
  • Software CD x 1
  • DC Fuse x 1
