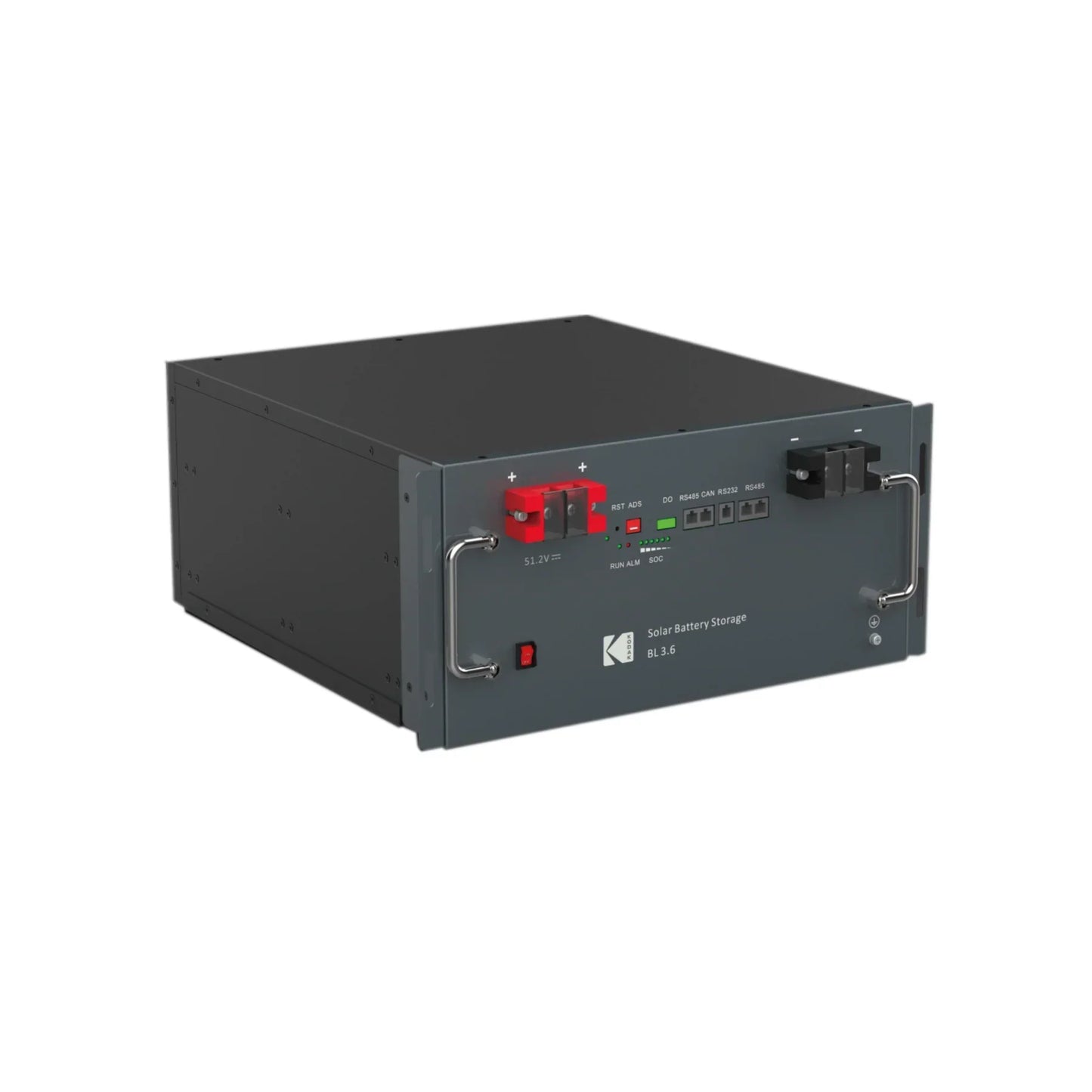

The BL3.6 Kodak battery is a high performance, 3.68kWh, scalable battery module perfect for expanding systems. A Single BL3.6 battery module allows up to 5000W of continuous discharge power. This means only one BL3.6 battery module is required for a 5kW inverter or only two required for a 10kW inverter.
The battery has up to 6000+ cycles depending on the DoD of the battery.
- 1.5 C industry leading C- rating allows single battery deployments for 5kW inverter systems
- 3.686 kWhrs capable of 15 units in parallel totalling 55.29 kWhrs
- RS485 and CAN communication ensures full compatibility with KODAK and Sunsynk
- Industry leading 95% DOD allowing for more useable capacity from the battery
- 10 year standard warranty
Due to the high discharge power of the BL3.6 Kodak battery, it is highly recommended to use bus bars for the battery connections.
Features:
- Overvoltage protection
- Undervoltage protection
- Short-circuit protection
- Low temperature charge protection
- High temperature charge protection
- High temperature discharge protection
- Low temperature discharge protection
- Charge over-current protection
- Discharge over-current protection
- Dormancy function
- RS232 / RS485 / CAN communication
- Warranty: 10 year warranty, >6000 life cycles
Specifications:
- Rated Power: 5000W
- Parallel capability: up to 15 units
- Rated voltage: 51.2V/72Ah
- Nominal capacity: 3.686kWh
- Dimensions (mm): 222 x 442 x 512
- Net weight: 42Kg
- Communication Interface: RS232 / RS485 / CAN
Electrical Parameters:
- Charge mode: CC / CV / CP
- Charging current: 50A (0.5C @25°C)
- Charging cut-off voltage : 58.4V (3650mV for cell)
- Discharge mode: CC / CP
- Discharging cut-off voltage: 40.0V (2500mV for cell)
- Discharge current: 115A (continuous)
Environment:
- Humidity: 5% to 95% Relative Humidity (Non-condensing)
- Operating Temperature: Charge: 0~+50°C / Discharge: -20~+55°C
- Storage Temperature: -20~45°C (3 months) /-20~+25°C (1 year)
- Shipment status: Voltage: 52V~54V SOC: 60%~80%
