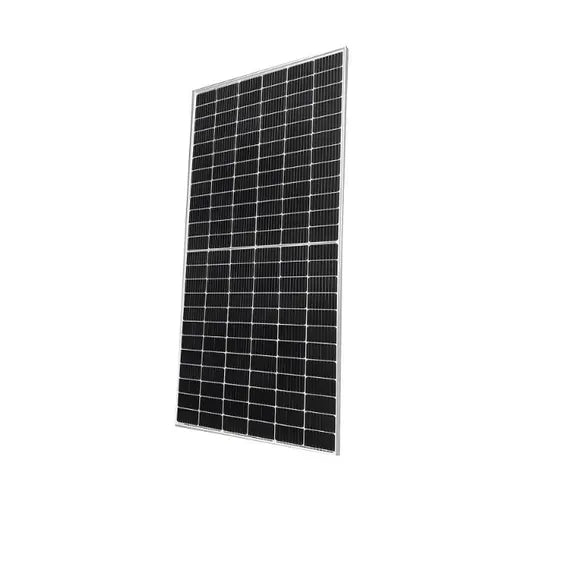

JA Solar 500W Mono Percium Half-cell Solar Panel with MC4

JA Solar 500W Mono Percium Half-cell Solar Panel with MC4

R 1,899.00 ZAR
R 2,099.00 ZAR R 1,899.00 ZAR
Sale Sold out
Shipping calculated at checkout.

15 in stock

FREE SHIPPING NATIONWIDE

Enjoy fast, reliable delivery at no extra cost—no matter where you are in South Africa. At Solarvac Energy, we offer free shipping on all orders, ensuring your solar products arrive safely and on time, right to your doorstep.

14 DAYS FREE RETURNS

14 Days Return

Not completely satisfied with your purchase? No problem. At Solarvac Energy, we offer a 14-day return policy on eligible items. Simply return the product in its original condition within 14 days of delivery for a refund or exchange—hassle-free and customer-focused.

The JA Solar 500W Mono Percium Half-cell Solar Panel with MC4 offers an increased power output of 500W, along with a lower levelized cost of energy (LCOE) compared to other products. It is also designed to be more tolerant of shading.

Features

  • Higher output power (500W).
  • Lower levelized cost of energy (LCOE).
  • Better shading tolerance.
  • Enhanced tolerance for mechanical loading.
  • 12-year product warranty and 25-year linear power output warranty.
  • Comes supplied with staubli MC4 connectors.

Certifications

  • IEC 61215, IEC 61730, UL 61215, UL61730
  • ISO 9001: 2015 Quality management systems
  • ISO 14001: 2015 Environmental management systems
  • ISO 45001: 2018 Occupational health and safety management systems
  • IEC 62941:2019 Terrestrial Photovoltaic (PV) modules – Quality system for PV Modules manufacturing

Technical Specifications

  • Supplier Part No:JAM66S30-500/MR
  • Cell: Mono
  • Weight: 26.3 kg
  • Dimensions: 2093mm x 1134mm x 30mm
  • Cable Cross Section Size: 4 mm2
  • No. of Cells: 132 (6 X 22)
  • Junction Box, 3 diodes
  • Connector:MC4-EVO2/QC 4.10-35
  • Cable Length: Portrait 200mm + 300mm, Including Connector Landscape 1200mm + 1200mm
  • Packaging Configuration: 36pcs/Pallet

Electrical Parameters at STC:

  • Rated Max Power (Pmax): 500
  • Open Circuit Voltage (Voc): 45.59
  • Maximum Power Voltage: (Vmp): 38.35
  • Short Circuit Current (Isc): 13.93
  • Maximum Power Current: 13.04
  • Module Efficiency: 21.1
  • Power Tolerance: -0~+5W.
  • Temperature Coefficient of ISCA: -0.045%
  • Temperature Coefficient of VC:-0.275%
  • Temperature of coefficient of Pmax: -0.350%
  • STC Irradiance 1000 W/m2, cell temperature 25C, AM 1.5G

Electrical Parameters at N0CT

  • Rated Max Power (Pmax): 378
  • Open Circuit Voltage (Voc): 42.72
  • Maximum Power Voltage: (Vmp): 35.93
  • Short Circuit Current (Isc): 11.27
  • Maximum Power Current: 10.52

Operating Conditions:

  • Maximum System Voltage: 1000V/1500V DC
  • Operating Temperature: -40C-+85C
  • Maximum Series Fuse: 25A
  • Maximum Static Load, Front: 5400Pa 1.5
  • Maximum Static Load Back 2400Pa1.5
  • NOCT: 45±2C
  • Safety Class: Class II
  • Fire Performance: UL Type 1
