Description

Advanced BMS with current limiting function
CAN Bus, fully integrates and communicates with leading Inverter brands(Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA…etc. )
Excellent high-temperature performance
High cycle life and service life
1C High-performance lithium battery
High energy density and conversionefficiency
Complete with an integrated battery management system
Compatible with most Inverters and chargers
Low self-discharge
Easy wall mount or shelf rack installation
Heavy-duty side handles for easy handling and mounting on the wall
Built-in protection for over-charge,over-discharge & over-temperature

Specification

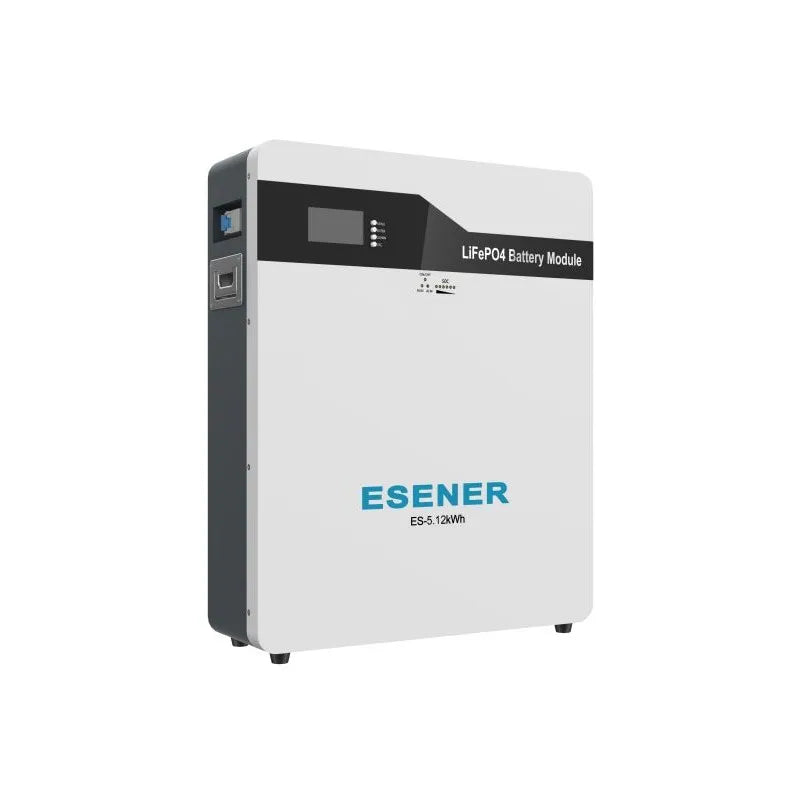

Model: ES-5.12KWH
Rated Capacity (5HR): 100 Ah
Voltage: 51.2 V
Discharge Cut off Voltage: 44.0V
Equalized Charge Voltage: 56.8 V
Max. Continuous Charging Current: 100 A
Max. Continuous Discharging Current: 100 A
C Rating: 1.0 C
Weight: Approx. 46 Kg
Display: LCD
Parallel: Parallel connection up to 15 packs with full communications
Dimensions (WxDxH): 505 x 543 x 162 mm
Ports: 1x CAN-bus, 1x RS-485 Battery Link ports, 2x Parallel Instruction ports
Cells: New Li-ion Prismatic cells
Warranty: 5 Years
Design Life: +/- 15 Years
Cycle Life @ 1C: +/- 4000 Cycles @ 100% DOD, Above 6000 cycles @ 80% D O D
Certification: CE, UN38.3,IEC,MSDS
Outer Package Material: White bake lacquer steel case
Operating Temperature: Charging: 0 to +50°C Discharging: -10 to +50°C Storage: -10 to +50°C
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
Compatible Inverter: Deye, Growatt, Sunsynk, Luxpower, ESENER, Victron, SMA, Voltronic, etc.
