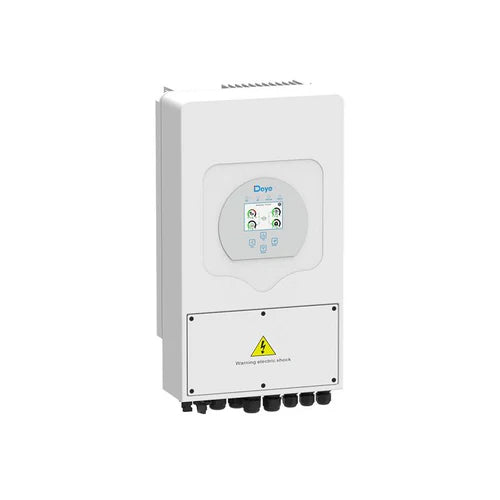

Deye 8kw Hybrid Inverter

Deye 8kw Hybrid Inverter

R 17,999.00 ZAR
R 17,999.00 ZAR
Sale Sold out
Shipping calculated at checkout.

Low stock: 8 left

FREE SHIPPING NATIONWIDE

Enjoy fast, reliable delivery at no extra cost—no matter where you are in South Africa. At Solarvac Energy, we offer free shipping on all orders, ensuring your solar products arrive safely and on time, right to your doorstep.

14 DAYS FREE RETURNS

14 Days Return

Not completely satisfied with your purchase? No problem. At Solarvac Energy, we offer a 14-day return policy on eligible items. Simply return the product in its original condition within 14 days of delivery for a refund or exchange—hassle-free and customer-focused.

Includes:  Wi-Fi Dongle + BMS Communication Cable

Higher yields.

  • Improve self-consumption ratio up to 80%, reducing your electricity bill.
  • DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
  • Two MPPT design, Max. efficiency of 97.6%.

User-friendly.

  • LCD Touch screen and buttons, easy operation.
  • Compatible with lithium-ion battery and lead acid battery.
  • Web browser and mobile App monitoring supported.

Reliable.

  • PV lighting protection, Anti-islanding protection, Leakage current protection etc.
  • Support store energy from DG when needed, ensure the system working within 7*24H.
  • IP65 protection degree, adapt to indoor and outdoor using.
  • Automatically switch from on-grid to off-grid mode within 5ms.
  • Zero exporting function, fast reaction within 200ms in zero export mode.

Smart.

  • Programmable charging and discharging schedule.
  • Both wind turbines and solar panels can be connected as DC input power.
  • Max. 16 units can be paralleled for higher system power.
  • Retrofitting of existing solar system to energy storage system.

Battery Input Data

  • Battery Type: Lead-acid or Li-lon
  • Battery Voltage Range (V): 40-60V
  • Max. Charging Current (A): 190A
  • Max. Discharging Current (A): 190A
  • Charging curve: 3 Stages/Equalization
  • External Temperature Sensor: Optional
  • Charging Strategy for Lithium Battery: Self-adaption to BMS

PV String Input Data

  • Max. DC Input Power (W): 10400W.
  • PV input Voltage (V): 370V (100V-500V).
  • MPPT Range (V): 125-425V.
  • Start-up Voltage (V): 150V.
  • PV Input Current (A): 22A + 22A.
  • No. of MPPT Trackers: 2
  • No. of Strings Per MPPT Tracker: 2+2.

AC Output Data

  • Rated AC Output and UPS Power (W): 8000W
  • Max AC Output Power (W): 8800W
  • Peak Power(off-grid): 2 times of rated power, 10 S.
  • AC Output Rated Current(A): 33.4A/35A
  • Max.AC Output Current(A): 36.7A/38.5A.
  • Max Continuous AC Pass-through(A): 50A.
  • Output Frequency and Voltage: 50/60Hz; 120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase)
  • Grid Type: THD<3%(Linear load<1.5%).
  • Current Harmonic Distortion: THD<3% (Linear load<1.5%).

Efficiency

  • Max. Efficiency: 97.60%
  • Euro Efficiency: 97.00%
  • MPPT Efficiency: 99.90%

Protection

  • PV Arc Fault Detection: Integrated (Except European Type)
  • PV Input Lightning Protection: Integrated
  • Anti -islanding Protection: Integrated
  • PV String Input Reverse Polarity Protection: Integrated
  • Insulation Resistor Detection: Integrated
  • Residual Current Monitoring Unit: Integrated
  • Output over Current Protection: Integrated
  • Output Shorted Protection: Integrated
  • Output over Voltage Protection: Integrated

Certifications and Standards

  • Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
  • Safety Regulation: IEC62109-1, IEC62109-2
  • EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B

General Data

  • Operating Temperature Range ( C ): -25—60 C , >45 C Derating
  • Cooling: Fan
  • Noise (dB): <30
  • Communication with BMS: RS485; CAN
  • Weight (kg): 32
  • Size (mm): 680 X 4200 X 233mm
  • Protection Degree: IP65
  • Installation Style: Wall-mounted
  • Warranty: 5 years
